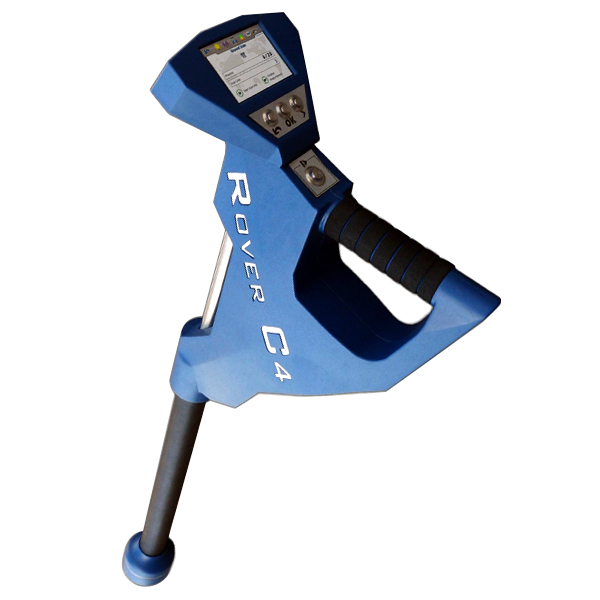

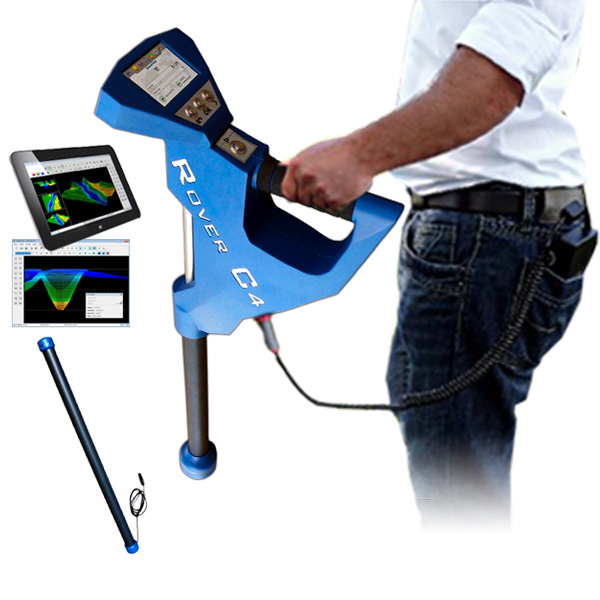

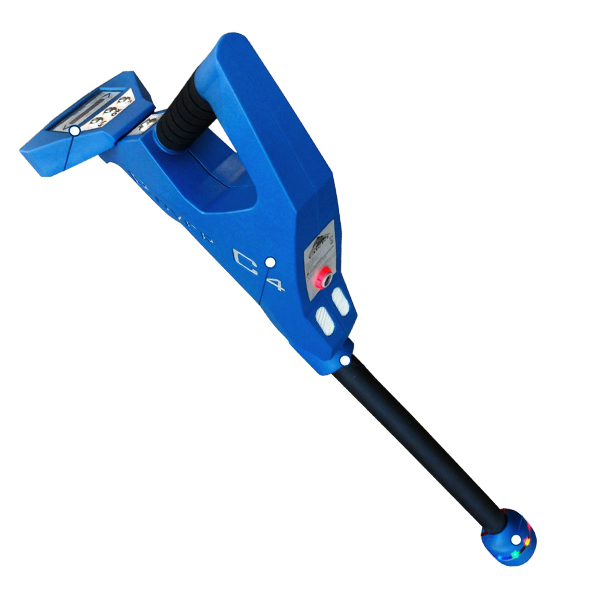

We improved the metal detection technology of the Rover Series and created the Rover C4. With this metal detector and 3d ground scanner we simplify your treasure hunting experience. We combined three former OKM detectors (Rover C, Rover C II and Rover Gold) into Rover C4.

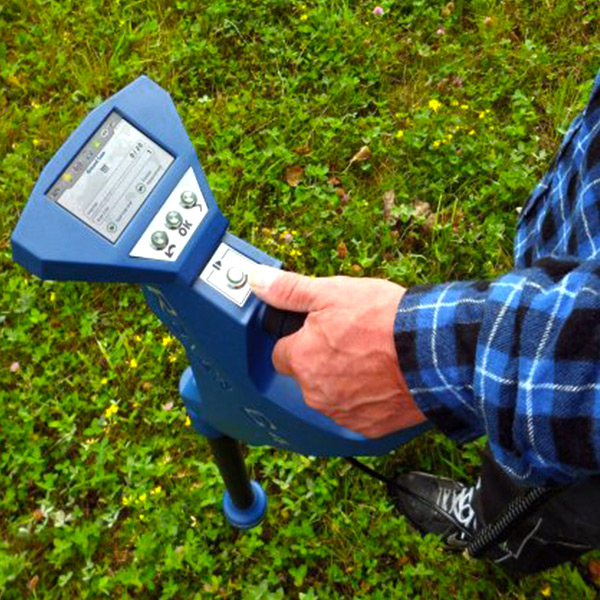

This treasure detector is easy to handle via touch screen. It can detect lost treasures (coins, rings, jewelry etc.) as well as void structures (tunnels, caves, chambers, sepulchers etc.). The detector is also equipped with an innovative LED orbit, that indicates underground targets visually. While scanning the ground this LED sphere emits colored light to visualize detected metals and cavities.
Additional features of the Rover C4 are:
- Supported operating modes: Ground Scan, Pin Pointer, Mineral Scan, Magnetometer
- Graphical user interface in many different languages
- Operational touch screen with alternative hardware buttons
- Multilevel LED lighting to operate the detector in dark environments
- Wireless data transfer
- 4 separated memory areas to store recorded measuring data

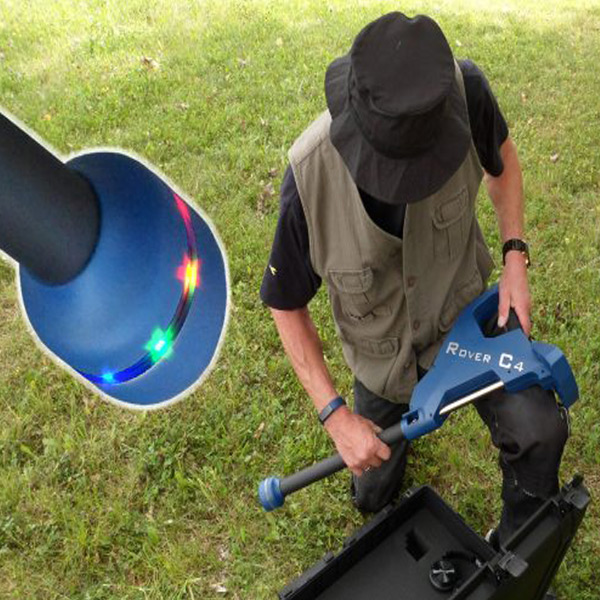

- Standard Probe and Super Sensor with innovative LED orbit
Ground scanning with metal detector Rover C4
One of the most versatile operating modes in our 3d metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.
Detectable items that can be found with our 3d ground scanner Rover C4 are:
- Lost treasures and hidden precious metals
treasure chests, gold coins, jewelry, silverware, statues, general valuables, buttons, medals, ...
- Underground voids and cavities
tunnels, graves, chambers, cellars, sepulchers, dugouts, shelters, bunkers, ...
- Natural gold minerals
gold ore, gold deposits, gold veins, ...
By walking over the field in a certain manner (Parallel or Zig-Zag) the treasure hunter scans the area of interest. With all recorded data the Visualizer 3D software creates a 3d image that represents all detected underground objects. Thus you know where and how deep the located treasures are in the ground.

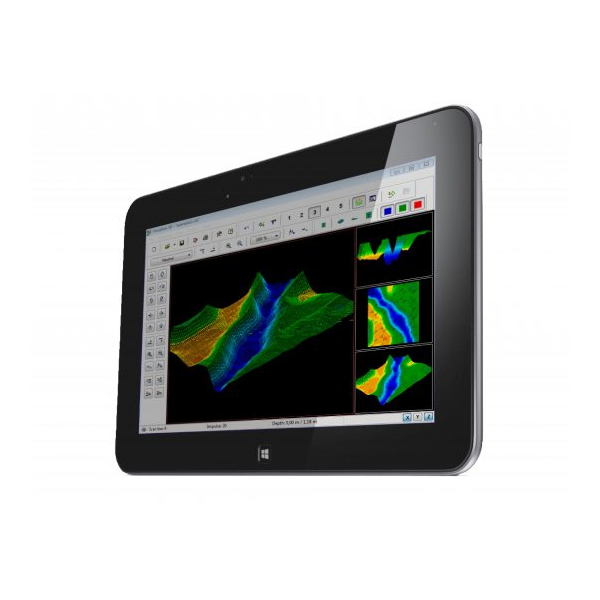

3D data analysis with Visualizer 3D software

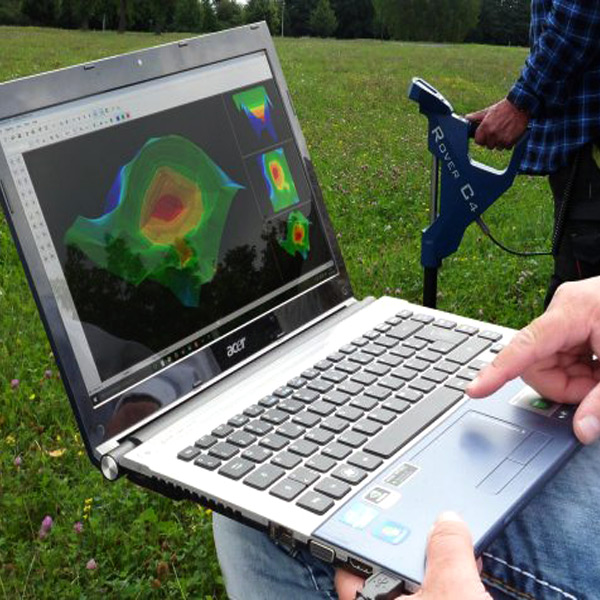

All data that has been recorded with the Rover C4 metal detector during a ground scan or mineral scan can be transferred to the Visualizer 3D software to process a detailed three-dimensional analysis.
During this analysis you can
- Identify potential objects and hidden treasures
You will see the targets represented by different colors. The color information will tell you if it is a ferrous metal (iron, steel, ...), precious metal (gold, silver, bronze, copper, ...) or a void structure (cave, tunnel, grave, chamber, ...).
- Determine position and depth
The software shows the position of the detected anomalies and - according to the chosen soil - how deep the target is buried in the ground.
- Calculate object dimensions
Next to the depth information Visualizer 3D can also calculate the dimensions of hidden targets and buried items.
With all those information the treasure hunter can easily recover lost treasures, hidden artifacts or ancient items. Contact our support team to get more information about the Rover C4 metal detector.
Control unit specifications
Dimensions (H x W x D) 390 x 300 x 140 mm
Weight about 1.5 kg
Input voltage (max.) 11 - 13 VDC, 6 W
Processor / Main CPU Cortex M3, 32 MHz
Processor / Slave CPU Cortex M0, 24 MHz
Display 3.5” Resistive touch, 480 x 320 Pixel
Display CPU Cortex M3, 32 MHz, 128 KB RAM
Data memory 4 GB
Sample rate 1024 values / second
Measurement resolution 16 bit
Operating temperature -10 – 60 °C
Storage temperature -20 – 70 °C
Audio Internal speaker / Bluetooth
Air humidity 5 % – 75 %
Length 445 mm
Diameter, Shaft / LED Orbit 35 mm / 65 mm
Weight 0.4 kg
Sensor technology SCMI-15-D
Length 960 mm
Diameter, Shaft / LED Orbit 50 mm / 65 mm
Weight 0.9 kg
Sensor technology SCMI-15-D
Data transmission (Bluetooth)
Frequency 2.4 – 2.4835 GHz
Maximum Transfer Rate 1 Mbps
Receiving Sensitivity -85 dBm
Maximum Range approx. 100 m
Computer, minimum requirements
CD-ROM drive minimum 4x
Interface (Data transmission) USB
Free disk space minimum 50 MB
Working memory (RAM) minimum 256 MB
Graphic card minimum 128 MB, OpenGL-compatible
Processor minimum 1.2 GHz
Operating system Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
