Equinox 800

The EQUINOX 800 Metal Detector with Multi-IQ technology, redefines all-purpose detecting for beginners to serious enthusiasts. Adaptable for all target types and ground conditions makes the 800 a true turn and go metal detector.
Available in Stock
  $ 1,500.00

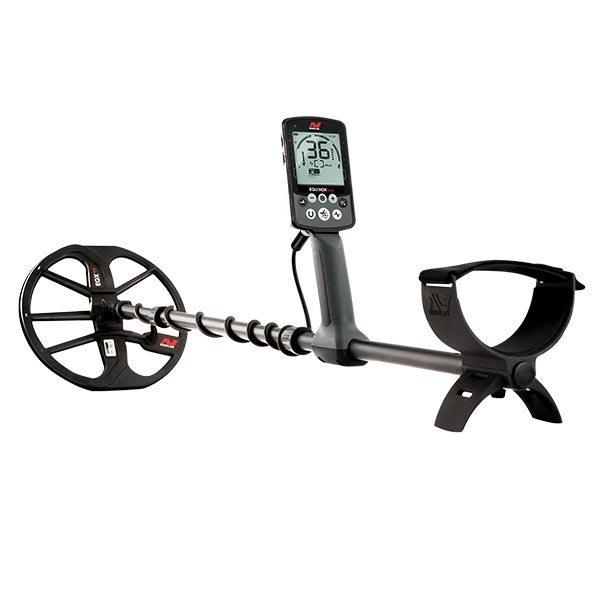

Minelab EQUINOX 800 Metal Detector
with 11" Double-D Smart Coil and Bluetooth Headphones with WM 08 Wireless Module.


The EQUINOX 800 Metal Detector with Multi-IQ technology, redefines all-purpose detecting for beginners to serious enthusiasts. Adaptable for all target types and ground conditions makes the 800 a true turn and go metal detector.

With the added functionality of Gold Mode, High Frequency 20/40 kHz., Wireless audio accessories and Advanced settings, the EQUINOX 800 offers extra versatility.

The EQUINOX 800 Gold mode is designed to enhance performance on small gold nuggets in mineralized ground. It does so primarily by using different audio processing so that targets respond both in volume and pitch. The Gold Mode will be of interest to gold prospectors, but has less application for other uses. More to the point, Multi-IQ is so good in both Park 2 and Field 2, that these profiles are as good if not better, at finding gold nuggets, than many dedicated single-frequency gold detectors! People who regularly detect for gold nuggets will likely want the EQUINOX 800.

The EQUINOX 800 adds the ability to shift non-ferrous tones and volumes, which can be helpful for those who hunt strictly by ear. These options can also be an aid to those with extreme hearing loss in a particular audio range.

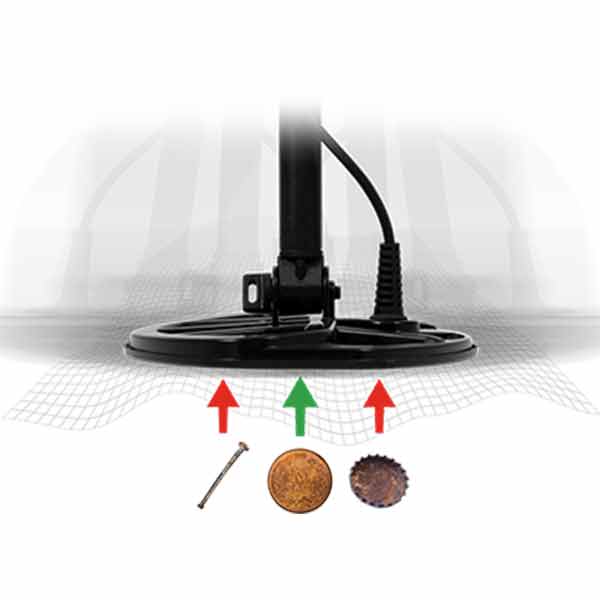

The other big difference between the EQUINOX 600 and the EQUINOX 800 is the “Advanced Settings” that allow for a finer degree of tuning on various options. The EQUINOX 800 has eight levels for finer tuning in the densest "carpet of nails" scenarios. The low settings offer more solid hits on very deep targets, but poor separation of closely adjacent targets. The high settings have great separation, but the clipped audio responses required in dense trash make it harder to hear very deep targets.

The EQUINOX 800 has a User Profile button that allows the operator to jump straight to an alternative Detect Mode. For example, to get from Park 1 to Beach 1 it only takes four pushes of the Detect Mode button to cycle through. You can also program an extra User Profile to get there in one button push. The EQUINOX 800 also has Low, Medium, High, or Off back-lit settings for the heavy users who want to conserve energy consumption.

The EQUINOX series both have automatic Noise Cancel but the 800 also offers a Manual override. If you hunt in areas of high electrical interference (EMI), or around lots of other detectors, this might be helpful in finding the quietest setting with the least interference. Automatic is great and most people will never use Manual.

The hard-core detectorists who want the extra features on the 800 will appreciate the extra perks and settings the machines have to offer.

Low frequencies give more depth on large targets, and high frequencies are usually more sensitive to small targets.

With EQUINOX you can operate across the full spectrum of frequencies simultaneously for maximum results.

Simplified Curves

* 20 kHz and 40 kHz are NOT available as single operating frequencies in EQUINOX 600. The Multi-IQ frequency range shown applies to both EQUINOX 600 and 800. This diagram is representative only. Actual sensitivity levels will depend upon target types and sizes, ground conditions and detector settings.

Features:

  • Total Weight : 2.96 lbs (1.34 kgs)
  • 3 Detecting Modes : Park, Beach and Field
  • Warranty : 3 Year Limited Detector, 1 Year Battery
  • Operating Frequencies : Multi, 5kHz, 10kHz, 15kHz, 20kHz, 40kHz
  • Fast & Accurate Target ID : Fast Recovery Speed with Accurate Target ID
  • Simultaneous Multi-Frequency : For Maximum Performance, Plus a Wide Range of Single Frequencies
  • Sleek & Lightweight : Rugged and Lightweight Construction Allows you to Enjoy Long Detecting Sessions in Any Environment
  • Advanced Settings : Gain Even More Control of your Audio with Advanced Settings; You Decide How Much Target Info you Hear
  • Wireless Audio : Compatible with Ultra-Fast Wireless Audio with the WM 08, and Fast aptX™ Low Latency / Bluetooth Headphones

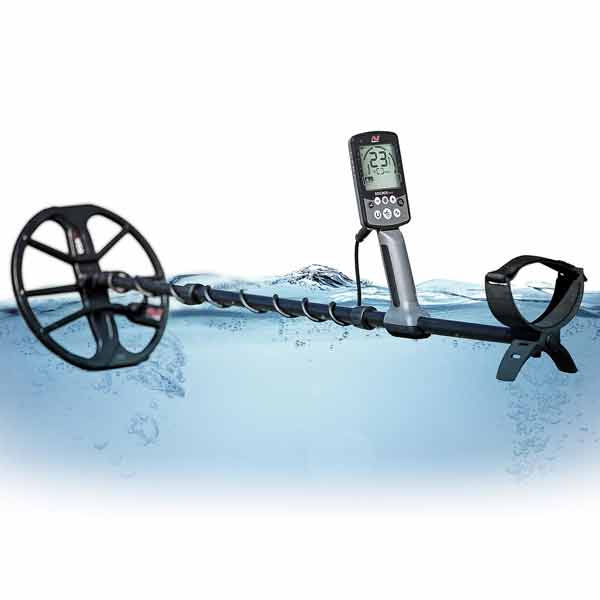

  • Waterproof Design : EQUINOX is Fully Submersible, Ideal for Detecting at the Beach and in Rivers, Streams and Lakes (3m / 10-feet)
  • Gold Detecting Mode : Operates the High Single Frequencies of 20 kHz, 40 kHz or Multi to Detect Gold Nuggets in Mineralized Soils
  • 8 Custom Search Profiles : Each Detect Mode Features 2 Custom Search Profiles so you can Save your Favorite Settings in Each Mode


Factory Included Accessories:
  • ML 80 Wireless Headphones with Hard Shell Case
  • WM 08 Wireless Audio Module
  • USB Charging Cable with Magnetic Connector
  • USB Charging Cable
  • Auxiliary Cable
  • ML 80 Instruction Sheet
