Worlds First 3D Imaging System with 40 Meters underground scanner
Available in Stock
$13,700.00   $ 10,500.00

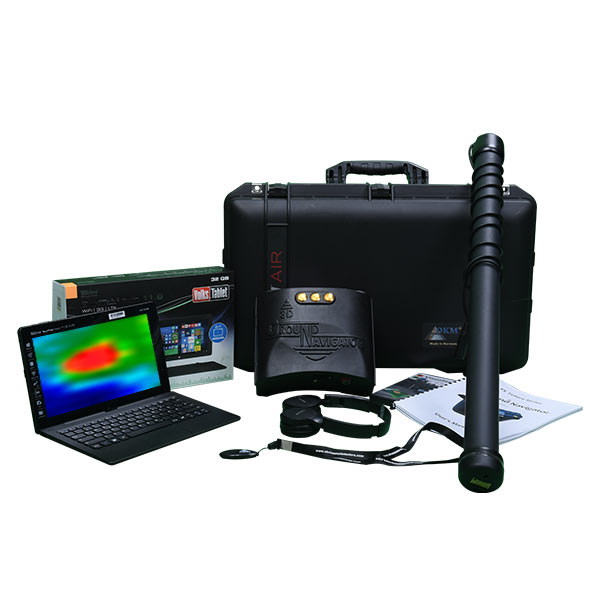

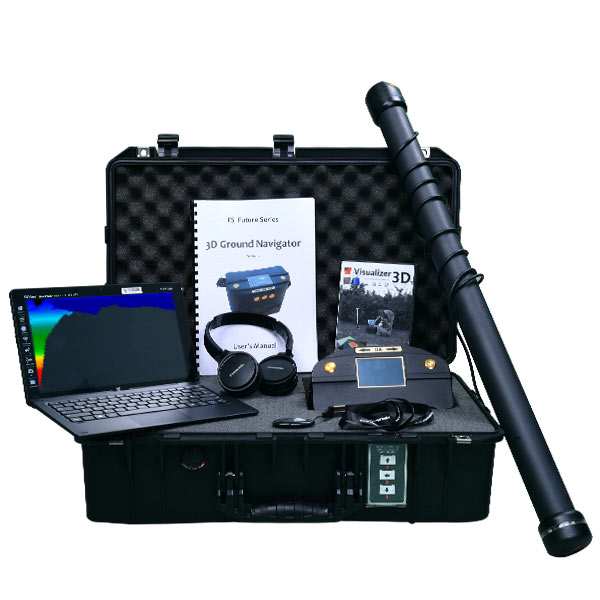

3D Ground Navigator Is A Modern 3D Ground Scanner And Metal Detector That Has Been Manufactured Exclusively By OKM Metal Detectors From Germany.
The Detector Has Been Developed According To Our Very Specific Customer Demands.
modern geophysical detection instrument to locate buried artifacts, lost treasures, subsurface anomalies, underground utilities as well as other hidden structures. It provides nondestructive examination methods to render graphical images of subterranean targets before excavation.
The Ground Navigator Control Unit Is Operated With An Internal Battery That Lasts For About 24 Hours.
If You Need To Extend This Operating Time, You Can Also Use The Optional Power Pack Which Lasts For About 48 Hours.

this is a new metal detector – the 3D Ground Navigator. We German Group established a co-operation with the German Metal Detector manufacturer OKM and ordered an exclusive Ground Scanner, that has been modeled according to our demands and the needs of our customers.

00Technical Specifications of 3D Ground Navigator ground scanner

The following technical indications are medial values. During operation small variations are quite possible. Technical changes due to development are possible!

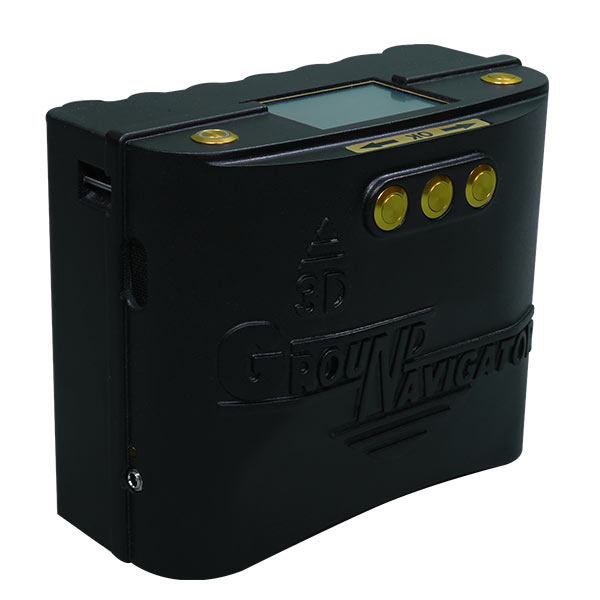

Control Unit

The control unit of the 3D Ground Navigator is powered by wireless Power Packs and is the main controller of the complete ground scanning system.

Dimensions (H x W x D):180 x 230 x 120 mm
Weight:approx. 1.2 kg
Processor:Atmel, 15 MHz
Display:OLED, 2 x 16 Digits
Data memory:Internal, 64 KB (about 32700 measured values)
Protection Class:IP40
Operating time (internal battery):approx. 24 hours
Charging time (internal battery):approx. 3 hours
Input (charger socket):19 VDC / 0.6 A (max. 24 VDC / 0.5 A)
Operating time (optional Power Pack):approx. 48 hours
Input (optional Power Pack):12.5 VDC / 0.9 A (max. 24 VDC / 0.5 A)
Operating temperature:-5 - 50 ℃
Storage temperature:-20 - 60 ℃
Air humidity:5 % - 75 %

Telescopic Super Sensor


Dimensions (L x D):540/1180 x 80 mm
Weight:approx. 1.3 kg
Sensor technology:SCMI-15-D

Data Transmission


Technology:USB, OKM Quick Link
Maximal Data Transmission Rate:9600 Baud

Computer, minimum requirements


CD-ROM drive:min. 4x
Interface (data transmission):USB
Free disk space:min. 50 MB
Free disk space:min. 50 MB
Working memory (RAM):min. 256 MB
Graphic card:min. 128 MB, OpenGL-compatible
Operating system:Windows Vista, Windows 7 - 10
